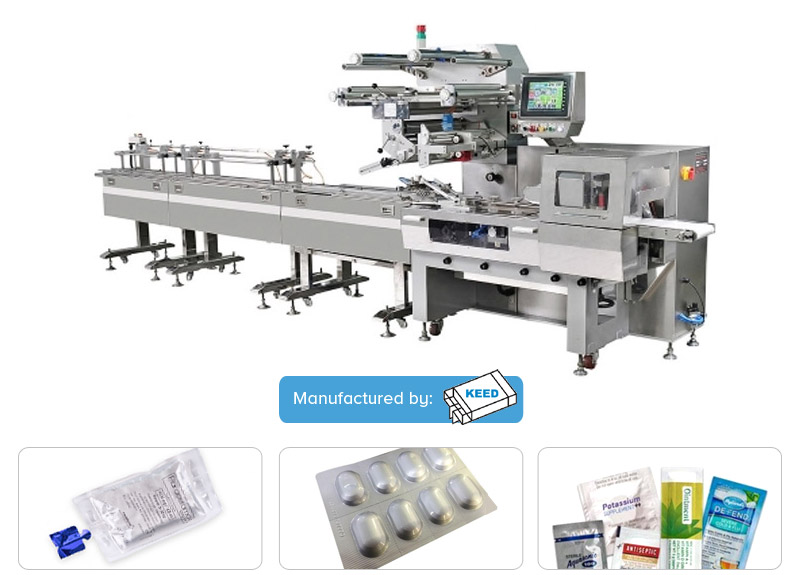

Flow Wrap Machine
The horizontal form-fill-seal flow wrapper is built upon the basic configuration with features that provide greater loading capacity and speeds. It has a rotating head and comes with the necessary components (such as trays and tubs) to facilitate packaging various types of products without in-line supports, such as a tri-color of pepper.
Specifications
| Product Application | Irregular, Cubical, Cylindrical, Square, Rectangular shaped solid Products |
| Quantity/Pouch | One Product/ Pouch (Can be changed as per requirement)) |
| Feeding System | Manual, Auto Feeder (Conveyor, Trolley etc.) |
| Temperature Controller | PID (Programmable Integral Derivative) based |
| Machine Control | PLC (Programmable Logic Control) based |
| Roll width | Max. 380 mm |
| Compressed Air | 6 CFM @ 6 Bar |
| Pouch/Sealing Type | Pillow type / Center seal |
| Pouch Dimension | Length (60-140,) Width (35-150), Height (10-70)in mm |
| Power Consumption | 3 kW |
| Speed | 30-140 Pouch / Min (Depends on laminate, Products size and shape) |
| Electric Supply | 220 V, AC, Single Phase, 50 Hz |
| Machine Dimension | Length (3600) x Width (1500 x height (2000) mm |
| Net Weight | 650 Kg |
| Optional Attachments (At an extra cost) | Electronic Coding Device |
Applications
All products in solid form like cake,candy, chocolates, bakery items, pharma ,sanitary items, industrial items like bearings, files,drills,cutters,switches,starters stationary items
